Understanding Ductless Mini-Split Systems
Ductless mini-split systems offer personalized climate control in different rooms without needing ductwork. These systems are energy-efficient and versatile, with several key components working together seamlessly.
Components and Functionality
A ductless mini-split system consists of two main components: the indoor unit and the outdoor unit. The indoor unit includes a fan and an evaporator coil, which cools or heats the air in a specific zone.
The outdoor unit houses the compressor and the condenser coil. The refrigerant flows between these units, absorbing and releasing heat. Inverter technology often enhances efficiency by adjusting the compressor speed.
Benefits of Mini-Split Systems
Mini-split systems are known for being energy-efficient. They allow individual temperature settings in different rooms, ensuring comfort for everyone.
These systems are quick to install, as they do not require ductwork. This makes them ideal for older buildings. Mini-splits can also improve air quality since there are no ducts to gather dust or allergens.
Comparing Ductless and Central HVAC Systems
Unlike central systems that use ducts to distribute air, ductless systems provide direct airflow through indoor units. This reduces energy loss by avoiding ductwork, potentially lowering energy bills.
Central systems often require a furnace and extensive ductwork. In contrast, a mini-split system offers a simpler installation process. While central systems are suitable for larger spaces, mini-splits offer room-specific control. This flexibility makes ductless systems a viable option for many homes and businesses.
Pre-Installation Considerations
Before installing a ductless mini-split system, we need to think about a few important things. The size of the system, where to place the units, and the electrical setup in the home are key steps for smooth installation and efficient operation.
Choosing the Right Sized System
Selecting the correct size for our ductless mini-split system is crucial. A unit that’s too small might struggle to keep our home comfortable, while one that’s too large can waste energy. We often look at factors like square footage and insulation.
We should consult an HVAC contractor. They can perform a Manual J load calculation. This helps ensure we’re choosing a system with the right capacity for our space. We should also consider the number of zones we want to cool or heat.
A properly sized system provides not just efficiency, but also consistent comfort in our rooms. We can save on energy bills and reduce stress on the equipment.

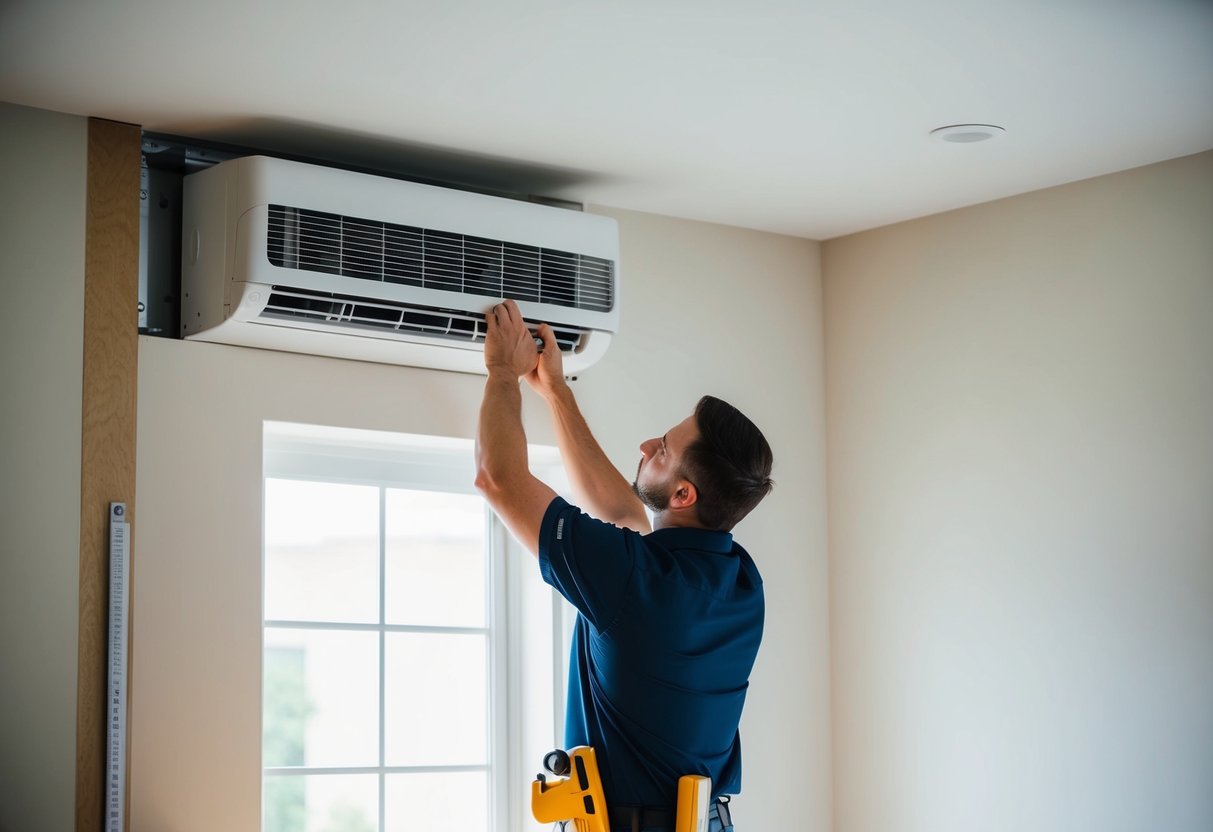

Determining Optimal Placement for Units
Placing indoor and outdoor units correctly is essential for optimal airflow. We aim for locations that allow air to move freely without obstructions. Indoor units should be mounted high on the wall but away from heat sources and direct sunlight.
For outdoor units, we ensure there’s enough clearance. This helps with airflow and maintenance access. A level surface is necessary to avoid vibrations and noise. Proper placement impacts both the performance and lifespan of the units.
Our goal is to keep units away from areas where debris can accumulate. This keeps airflow steady and reduces upkeep.
Assessing Home Electrical Capacity
Before installation, it’s important to review our home’s electrical panel. Mini-split systems require specific voltage and amperage. An HVAC contractor can check if our system can handle the additional load.
We might need to upgrade our electrical panel or wiring. It’s crucial for safety and to prevent tripped breakers. The electrical setup must comply with local codes and regulations.
This step ensures our system runs smoothly without power issues. Safety comes first, so having the proper electrical capacity protects both the equipment and our home.
Installation Process
Installing a ductless mini-split system involves several key steps, from mounting the actual units to connecting the necessary electrical and refrigerant components. Each part of the process requires careful attention to detail to ensure the system runs smoothly and efficiently.

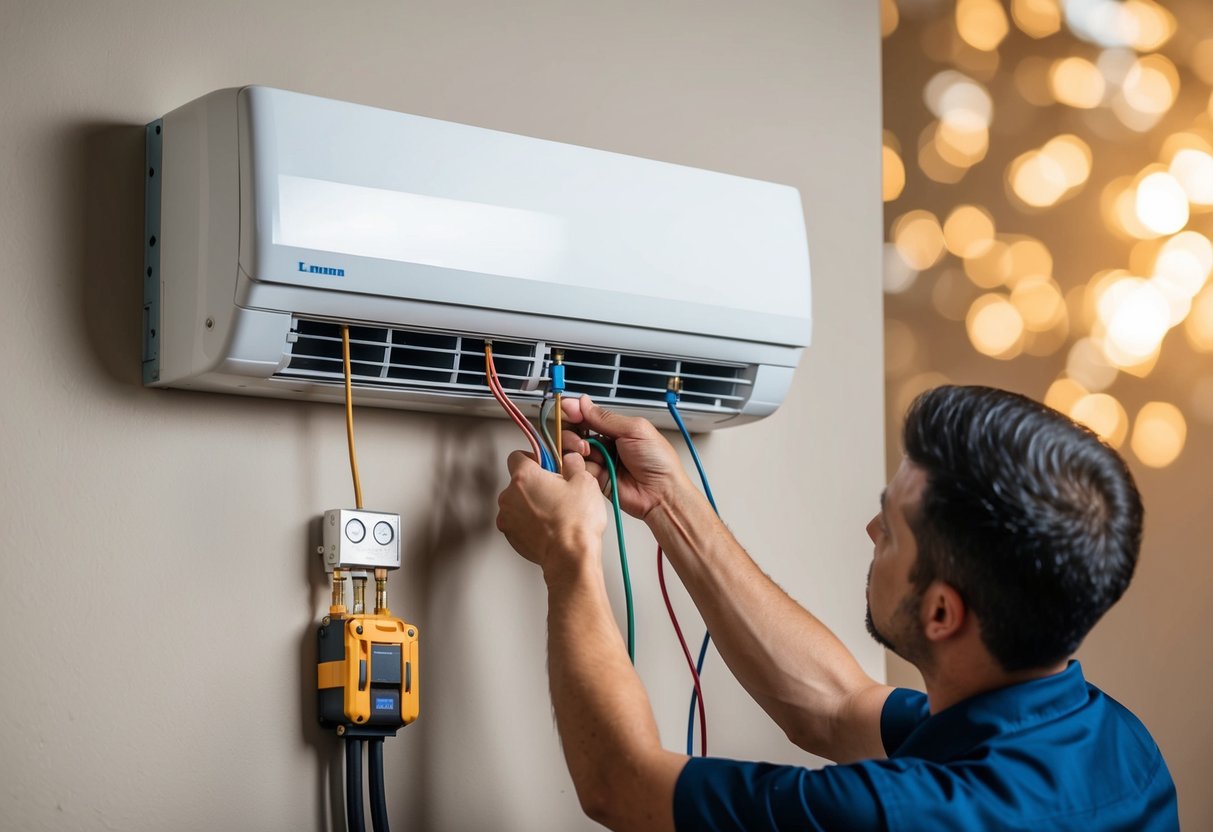

Mounting Indoor and Outdoor Units
When we start with the indoor unit, it’s crucial to choose a central location on an interior wall. The unit comes with a mounting bracket that needs securing to the wall. We must ensure it’s level so the system can operate efficiently.
For the outdoor unit, we select a stable and accessible spot on the ground or a flat surface. Keeping it away from direct sunlight and heavy debris is important. We use brackets or a concrete pad to secure the unit, allowing adequate air circulation.
Running Power and Refrigerant Lines
We connect power and refrigerant lines between the indoor and outdoor units. This involves laying out the refrigerant line set and the power cable, designed to move coolant and electricity safely.
The lines often pass through a small hole drilled in the wall. Conduits protect these lines from damage and weather elements. A condensate drain is also needed, installed at a downward angle for proper drainage. Proper insulation is critical to maintain energy efficiency and minimize loss.
Setting up the Electrical Wiring
The system requires electrical wiring for power and communication. We start by installing an electrical whip, which connects the outdoor unit to the breaker panel. Proper gauge wires ensure safety and reliability.
Communication wires connect the indoor and outdoor units to allow them to function in sync. Following local electrical codes and possibly working with an HVAC professional guarantees safety and compliance. Ensuring everything is connected properly minimizes the risk of electrical issues.
Finalizing the Setup and Testing
With all components securely in place, we move to finalize the system. Charging the system with refrigerant requires careful attention. We use a vacuum pump to remove any air and moisture from the lines, ensuring the system is ready for operation.
Finally, comprehensive testing is crucial. We power the system, checking for any leaks or issues in performance. We verify the AC is cooling as expected and inspect all electrical components. Adjustments are made as needed for optimal operation.
Safety and Maintenance Guidelines
When installing ductless mini-splits, focusing on safety and regular care ensures optimal performance and longevity. Key points in maintaining these systems involve consistent cleaning, timely servicing, and identifying common issues efficiently. Here’s how we can manage each aspect.
Regular Cleaning and Servicing
Cleaning and servicing our ductless mini-split system is essential to ensure it works properly. We need to clean the filters every month to keep the air quality high and the system running efficiently. Use mild soap and water for best results.
It’s important to have a professional HVAC technician check the system at least once a year. They will check the electrical components, refrigerant levels, and other critical parts. This yearly check-up helps catch any problems early and extends the lifespan of our equipment.
Troubleshooting Common Issues
Sometimes, we may notice issues like strange noises or reduced cooling. Common problems could include clogged filters, refrigerant leaks, or faulty electrical connections. Usually, cleaning or replacing filters can solve minor problems quickly.
For bigger issues, contacting an HVAC technician is wise. They have the tools and knowledge to fix complex problems safely. Always ensure the system is powered off before inspecting anything to avoid safety hazards. It’s a good idea to keep a log of any issues and solutions for future reference.
Understanding Maintenance Responsibilities
We need to understand our responsibilities to keep our mini-split system running well. Basic tasks, like cleaning filters and checking for visible warnings, fall under our care. These preventative measures help avoid major repairs and ensure efficiency.
Some responsibilities call for professional expertise. These include handling refrigerants and inspecting electrical components. Leaving these tasks to a licensed HVAC technician can prevent safety hazards. Let’s set reminders for seasonal maintenance to keep the system in top shape with minimal hassle.
